TECHNICAL SPECIFICATIONS
CATEGORY: MIXER MACHINE



FEATURES

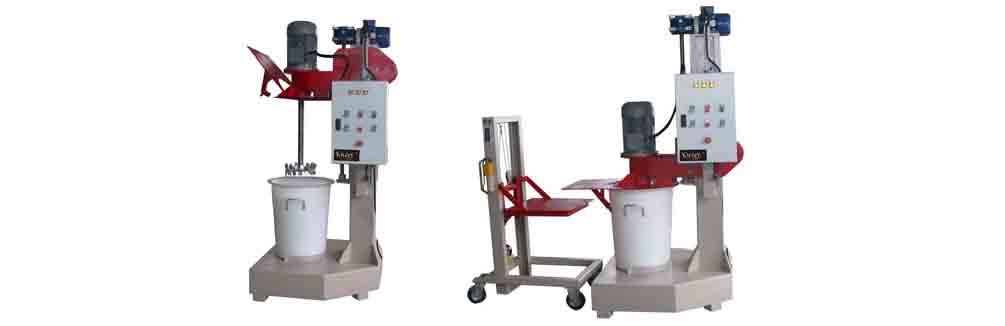

GRC / GFRC Mixer Machine, precast with low and medium capacity
reliability for production facilities, offers ease of use and high performance together. Its many features with reliable and high quality GRC your business / production is the best assistant in GFRC fees.

120 kg Bucket capacity

Treated against corrosion, vane impeller with special design

01500 rev / min allows operation only turnover

Dust protection cover which provides superior sealing closing bucket of the bucket during mixing

The speed from 0 to 1500 rpm can be adjusted manually up to the long-term than their competitors it raises the need to use the mixer blade.

The speed of 0 rpm up to 1500 compared to its competitors because it can be adjusted manually premixed mortar casting style is suitable for construction.

It also provides more unnecessary turnover to the mortar without the need for a better quality of construction quality and prevent the mortar from falling, which will occur due to overheating.

To the mortar uniformly mixed in a quality manner, while mixing blade

Homogeneous Mortar Mixing System that allows moving up and down automatically

Mixing blade, stop as soon as it detects automatically removed from the bucket Safe

Mixing System

TECHNICAL SPECIFICATIONS

  • Body: Electrostatic painted steel body
    Blade: treated against corrosion, poultry Custom Design
    Mixing Speed: Single speed Fast (01500 rev / min)
    Voltage Requirements: 380 V, 50 Hertz
    Electric Motor: 7.5 kW
    Main Power Cable: 5x4mm2 TTR Cable
    Bucket Capacity: 120 kg
    Ground Clearance (Body): 100 cm
    Ground Clearance (Arm): 255 cm
    Arm Height: 400 cm, 250 cm
    Dimensions: H: 255cm x W: 95cm x W: 130cm
    Weight: 380 kg (2 pcs Aquarius)
    Additional Features: Homogeneous Mortar Mixing System
    Secure Mixing System
